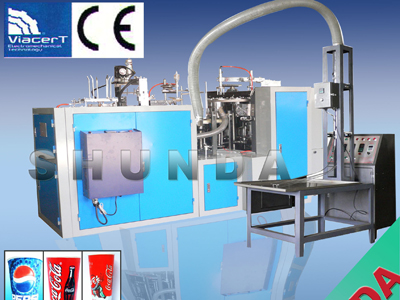

ZBJ-16A paper cup machine is a high speed paper cup shaping machine,it has the intellectualization designe on PLC automatic failure alarm and inspecting.This is the latest machine absorbing the ZBJ-9A and ZBJ-12A’s advantage,runs a whole procedure of automatic paper feeding,cup-fan-wall sealing,oiling,bottom pressing.heating,rolling and trippng.
It adopt ultrasonic and hot air for heating,For a better cup body and bottom connection,we take heating phase into three steps! This is an ideal machine to make the paper cups for hot drink,cold drink and ice cream paper cup!
Main Technical Parameters
|
Voltage
|
380V 50HZ 3-phase plug and 4 piece line
|
|
Power
|
12KW
|
|
Heating system
|
Ultrasonic and hot air heating
|
|
Production range
|
4oz—16oz（110ml—60ml,mould replacement is available）
|
|
Paper request
|
150gsm—400gsm（single&doulble PE coated paper are accepted）
|
|
Speed
|
65-75pcs/min
|
|
Dimension
|
2800mmX2000mmX1500mm
|
|
Divided box
|
125’
|
|
Weight
|
3Ton
|
|
Remark
|
We can make the machine according to customer’s request
|
Feature:
1.It is an intellectualization equipment,easy to operate(one person).It has the whole production line from paper fan to ready paper cup!
2.It adopt the best ultrasonic in China,has the steady performance
3.It used 125’ divided box,has the long life usage than normal machine
4.It used the Danfoss’ transducer(from Danmark),can control the speed by operator
5.Photoelectricity tracking,,automatic failure alarm,inspecting make the production more efficient
6.Stainless steel panel and the metal painting,make the machine in good shape.
7.The electric appliance box is separated from the mail machine avoiding the machine damaged and circuitry aging advance just because of the shaking
