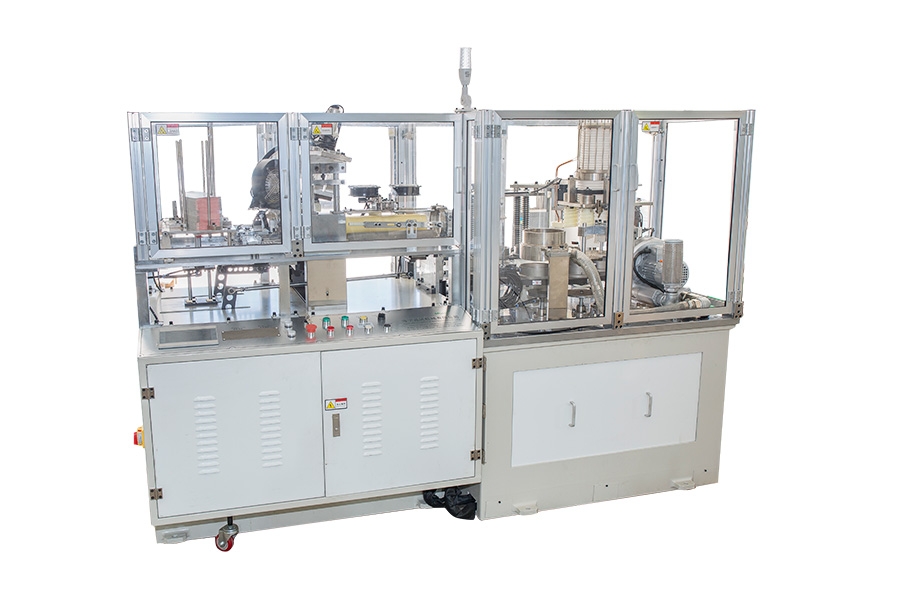

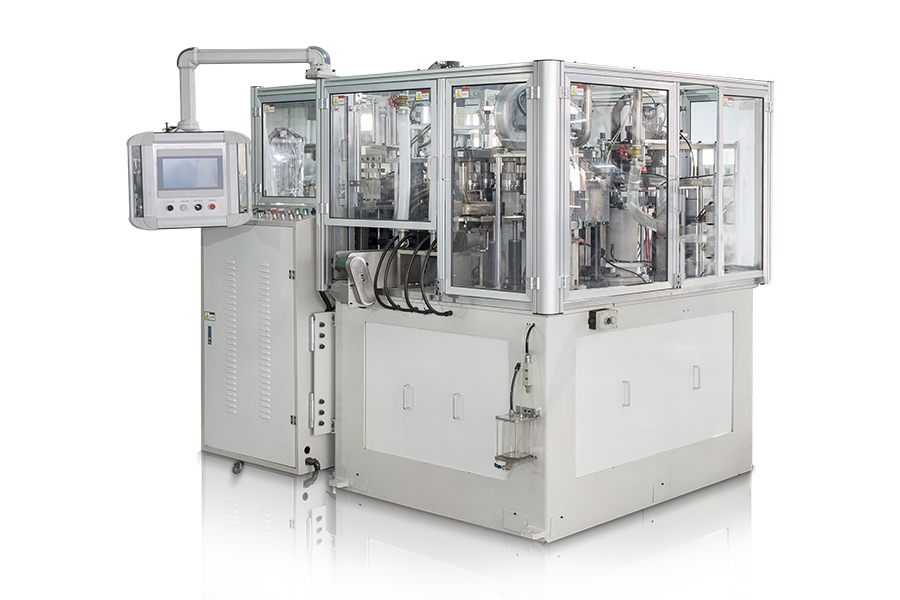

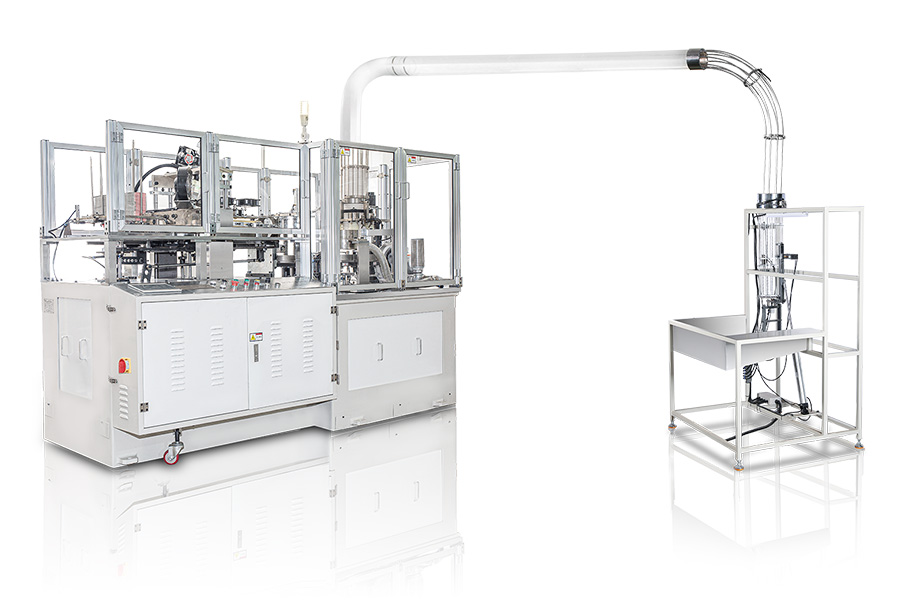

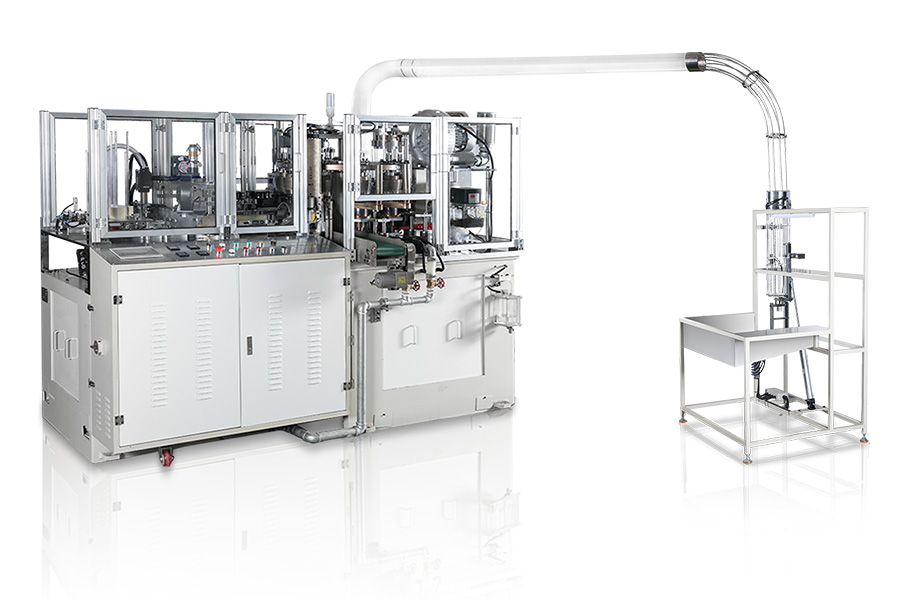

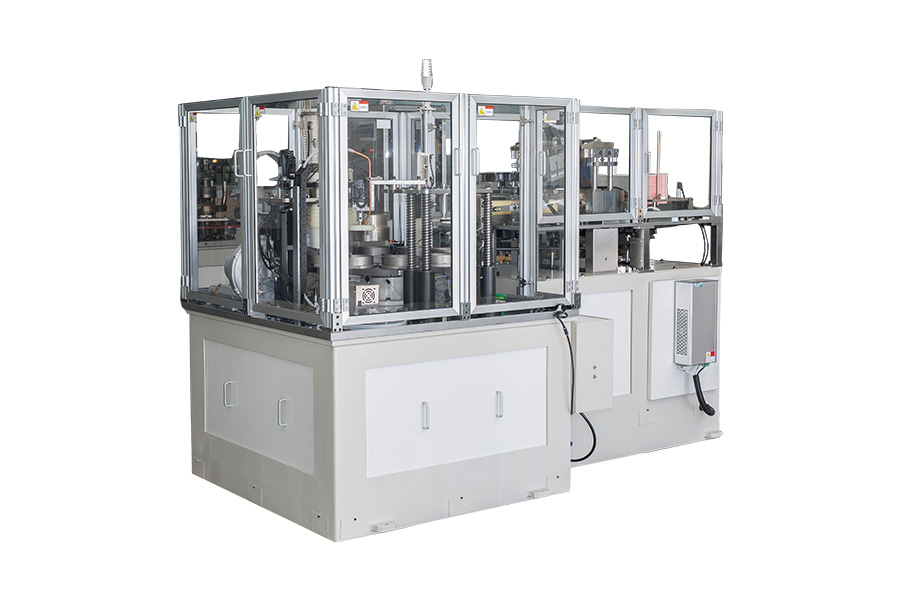

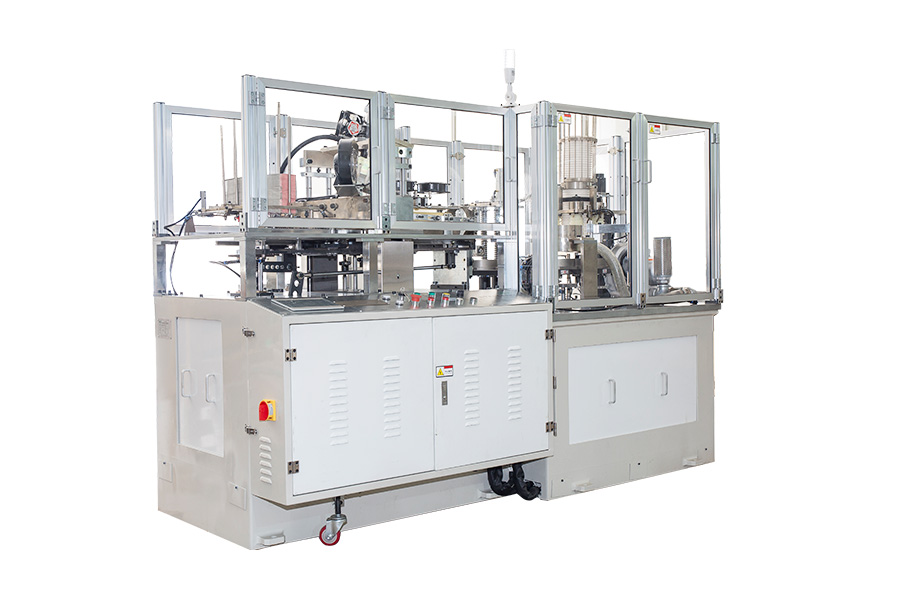

SMD-80A Double-Wall Paper Cup Machine

SMD-80A Double-Wall Paper Cup Machine

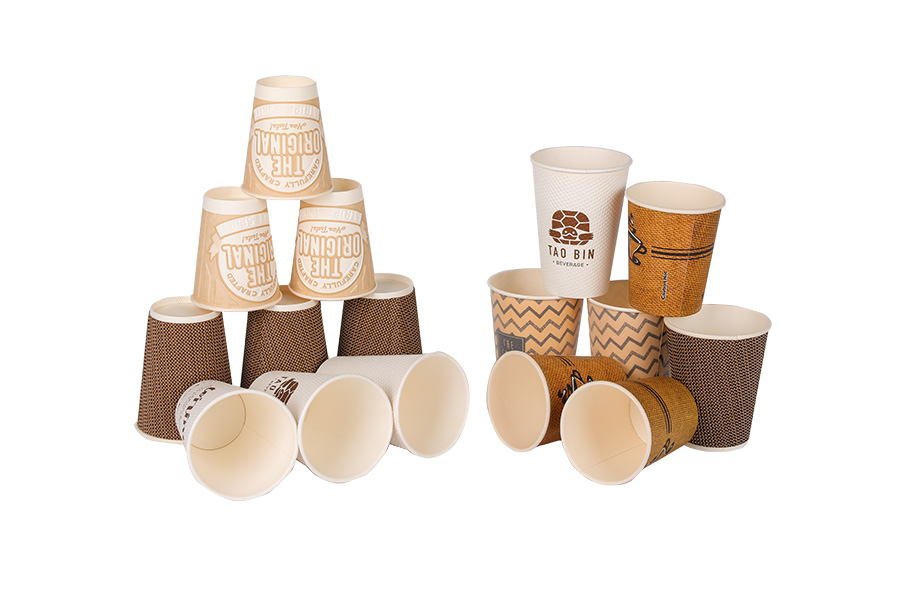

It can make the hollow wall and ripple wall, suitable for making coffee cups, and tea cups with two layers, and also can wrapped for noodle bowls, and plastic or foam cups.
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
  • SMD-80A Double-Wall Paper Cup Machine
Contact Us
Description

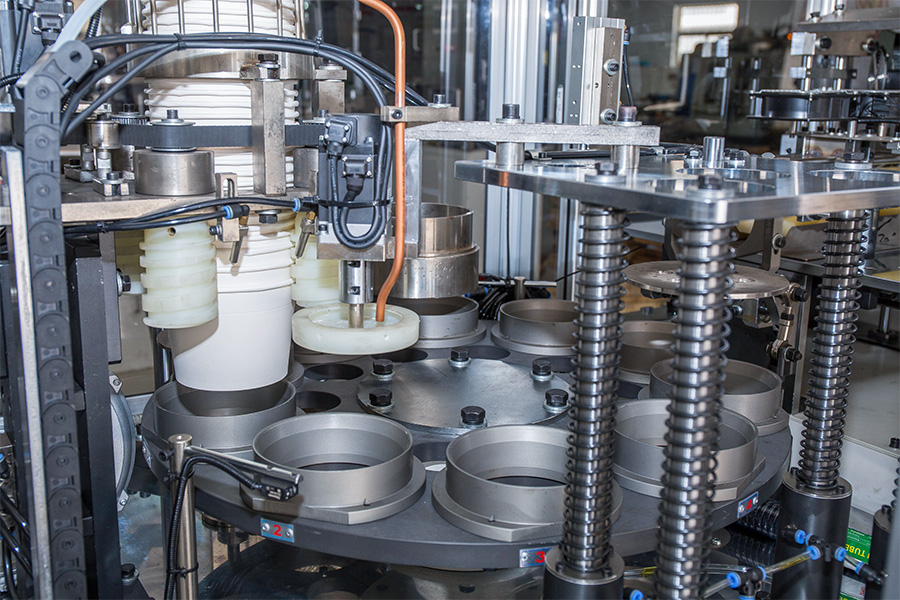

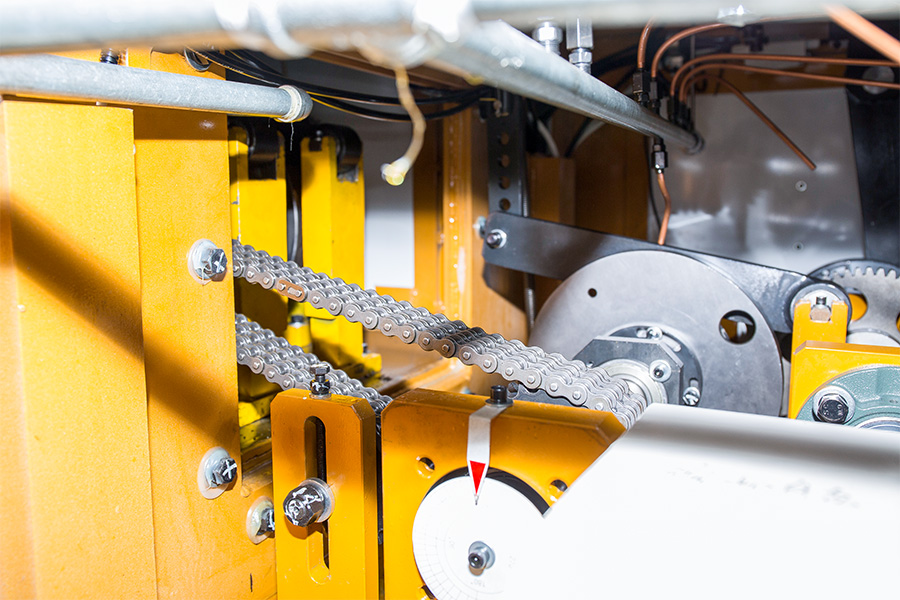

The double wall machine comes with an opening cam mechanism and gear transmission. The whole machine adopts an automatic lubrication system, which makes all mechanical parts work much more smoothly.

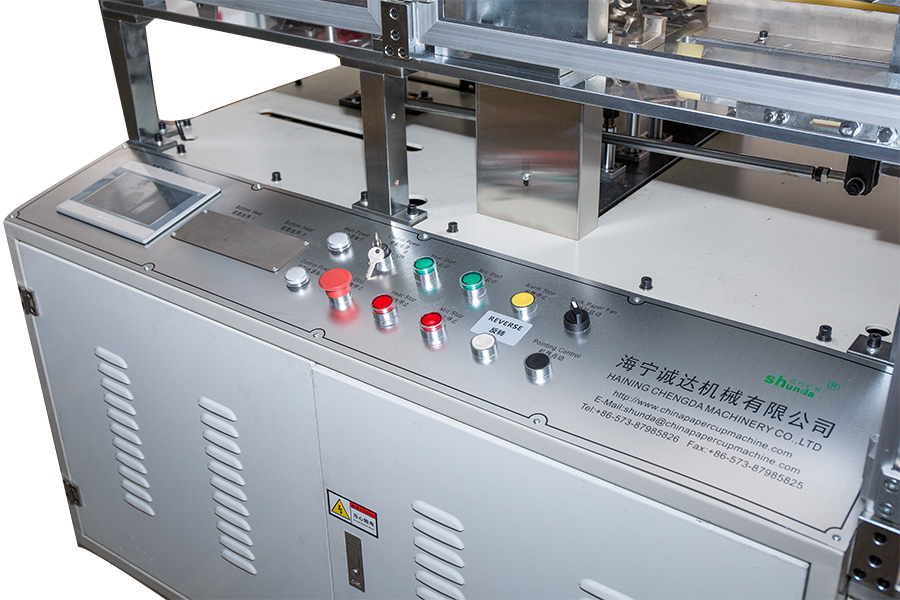

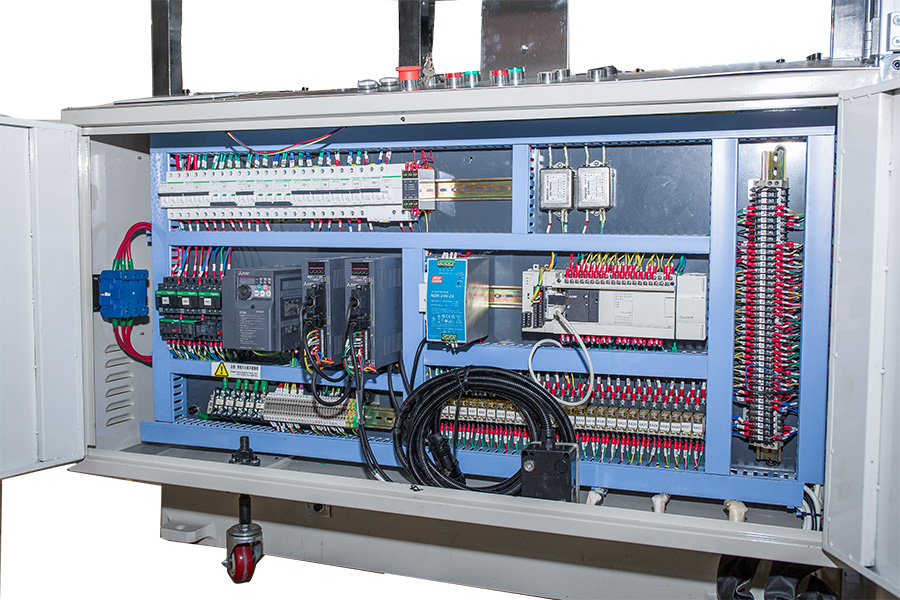

It has an inverter for auto speed adjusting and stops automatically of any problem controlled by sensors we installed so that the machine is well protected and becomes more durable.

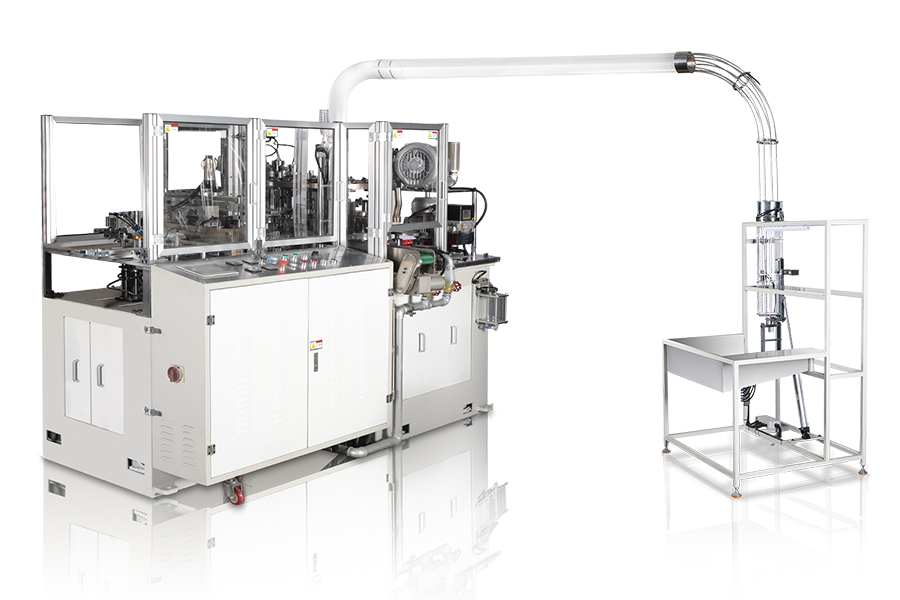

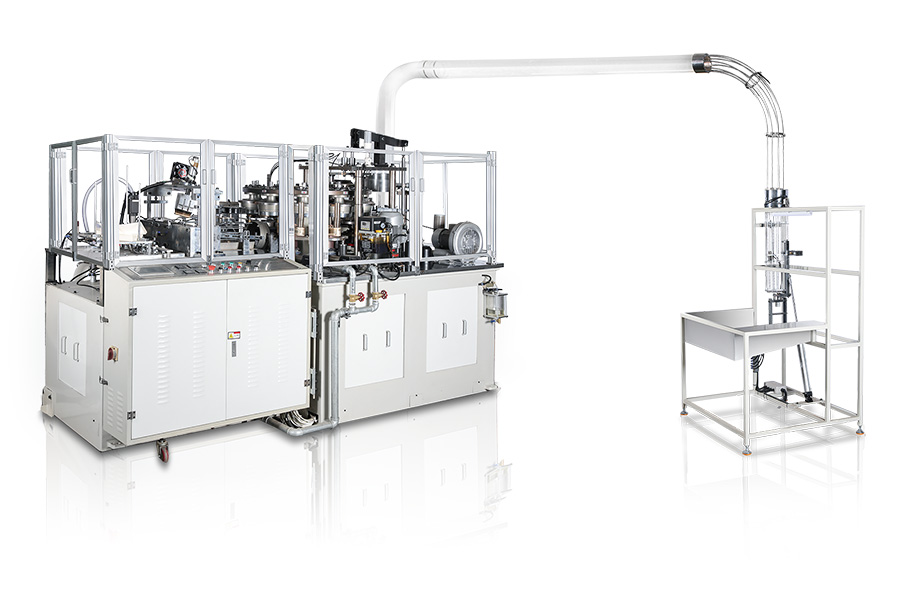

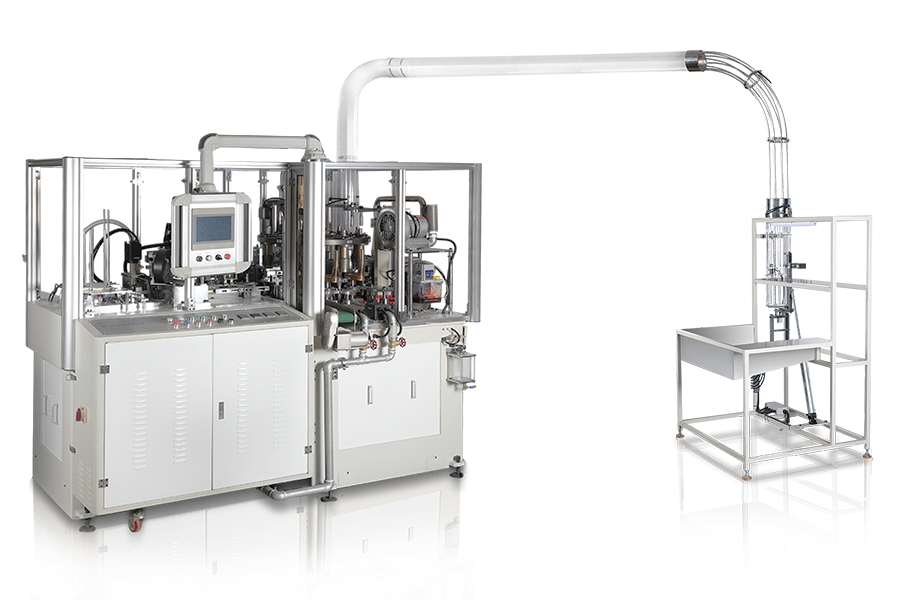

Usually, it can connected with paper cup machine SMD-90 and paper bowl machine SMD-80B as the whole production line automatically, less labor required for machine operation.
Specification
Model SMD-80A
Capacity pcs/min 80-100 70-90
Size Range mm(max) Top Diameter:Φ100
Bottom Diameter:Φ80
Height:110
Top Diameter:Φ150
Bottom Diameter:Φ80
Height:140
Suitable Paper Thickness gsm 135-450

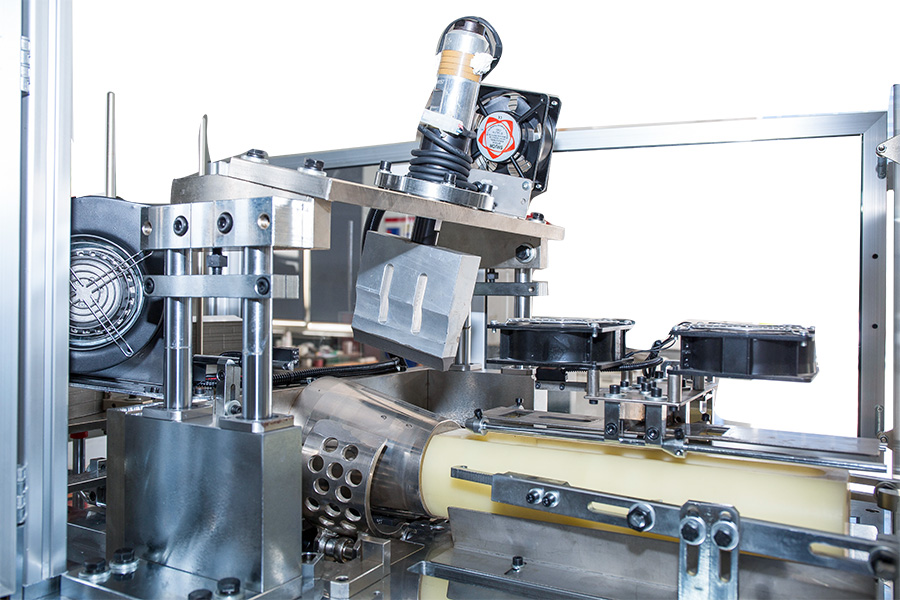

Sealing Method / Ultrasonic
Running Power KW 9 10
Air Compressor / 0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa
Net Weight Kgs 3000 3200
Machine Dimension mm 2500*1800*1700 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860

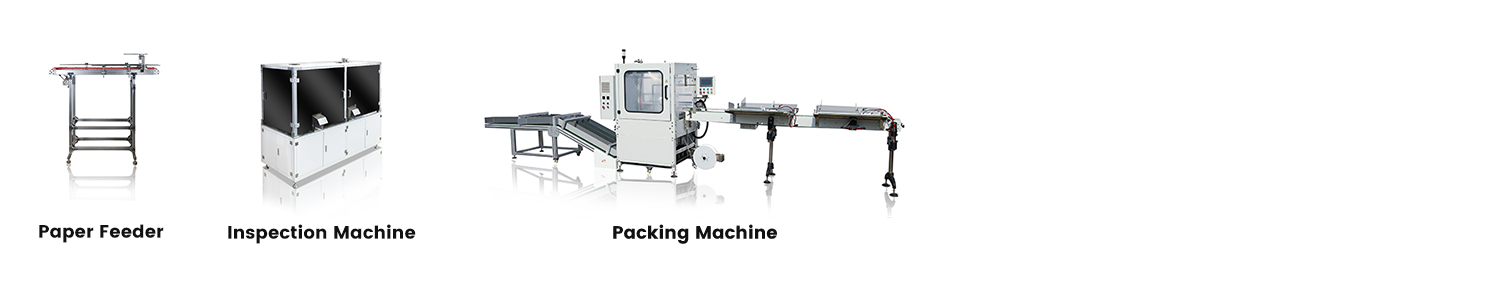

Optional Supporting Equipment
Contact Us
Haining Chengda Machinery Co., Ltd.
Haining Chengda Machinery Co., Ltd.

Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional Wholesale SMD-80A Double-Wall Paper Cup Machine Manufacturers and Double-Wall Paper Cup Making Machine Factory. We have R&D, production and sales department. After 20 years of hard work, our company has a strong technical team and a research and development center cooperating with Taiwan's senior paper container molding technology team and obtaining national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers, and other infrastructure. Our company has CE, ISO9001 certification system, and national import and export rights.

In recent years, based on the characteristics of Chinese paper and the development trend of paper containers at home and abroad, we have developed a batch of international synchronization technology units of the intelligent molding Machine with automatic detection systems and remote connection systems for paper cup machine, paper tube machine, paper lid machine, doner box machine, etc.

Machine Industry knowledge

How does the intelligent fault diagnosis system of the SMD-80A double-layer paper cup machine work?

The SMD-80A double-layer paper cup machine intelligent fault diagnosis system is an intelligent system that integrates data collection, processing, analysis and early warning. It uses advanced sensor technology and data analysis algorithms to monitor the operating status of the paper cup machine in real time, and predicts and diagnoses possible failures through preset failure mode recognition algorithms.
The primary task of the intelligent fault diagnosis system is to collect various data during the operation of the paper cup machine. These data include the current, voltage, rotation speed of the motor, the speed of the conveyor belt, the tension and thickness of the paper, etc. The sensor converts these physical quantities into electrical signals and then transmits them to the system's data processing unit.
After receiving the sensor data, the data processing unit will perform a series of processing operations, such as filtering, denoising, standardization, etc., to extract valuable information for fault diagnosis. At the same time, the system will also store the processed data for subsequent analysis and query.
The core function of the intelligent fault diagnosis system is to analyze the collected data to identify possible failure modes of the paper cup machine. The system has a variety of built-in fault mode recognition algorithms. These algorithms can accurately identify various fault characteristics through learning and training of historical fault data.
When the system detects certain data anomalies or matches a certain failure mode, it will immediately trigger an early warning mechanism. The early warning can be a sound and light alarm, or it can send early warning information to the mobile device of the manager so that timely measures can be taken to handle the fault.

What are the specific advantages of SMD-80A double-wall paper cups in terms of heat insulation and durability compared to traditional single-layer paper cups?

Thermal insulation is an important performance indicator of paper cups, especially when it needs to contain high-temperature liquids. Due to its single-layer structure, traditional single-layer paper cups are often difficult to effectively isolate heat, making users easily feel hot when drinking, which affects the user experience.
In contrast, the SMD-80A double-wall paper cup adopts a double-wall structure design, leaving a certain air layer between the inner and outer paper cups. This layer of air acts as a good thermal insulation, effectively slowing down the transfer of heat. Therefore, even if it contains high-temperature liquid, users can feel that the temperature of the cup wall is moderate and will not burn their hands. In addition, the double-layer structure can maintain the temperature of the liquid for a longer period of time, allowing users to enjoy a better taste during drinking.
Durability is another important performance indicator of paper cups, which is related to the service life and reuse rate of paper cups. Due to its material thickness and structural limitations, traditional single-layer paper cups are often prone to deformation, cracking and other problems during use, reducing their durability.
The SMD-80A double-wall paper cup has been optimized in material selection and structural design. It uses thicker paper material to improve the overall strength of the paper cup. At the same time, the double-layer structure design also enhances the pressure resistance and deformation resistance of the paper cup. Therefore, the SMD-80A double-wall paper cup can better resist external extrusion and collision during use, is not easy to deform and break, and has higher durability.
In addition, the durability of the SMD-80A double-wall paper cup is also reflected in its reusability. Due to its excellent insulation and durability, this paper cup is more suitable for use in situations where liquids need to be replaced frequently, such as coffee shops, restaurants, etc. By reducing the frequency of replacement of paper cups, it not only reduces costs, but also helps reduce environmental pollution, which is in line with the concept of green environmental protection.
